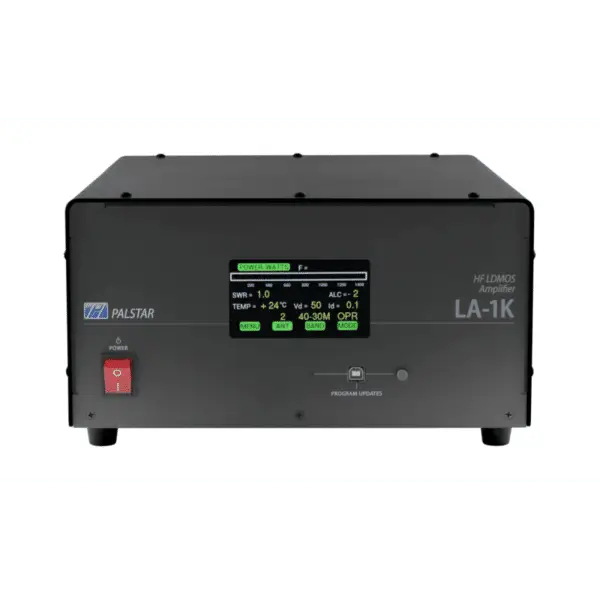

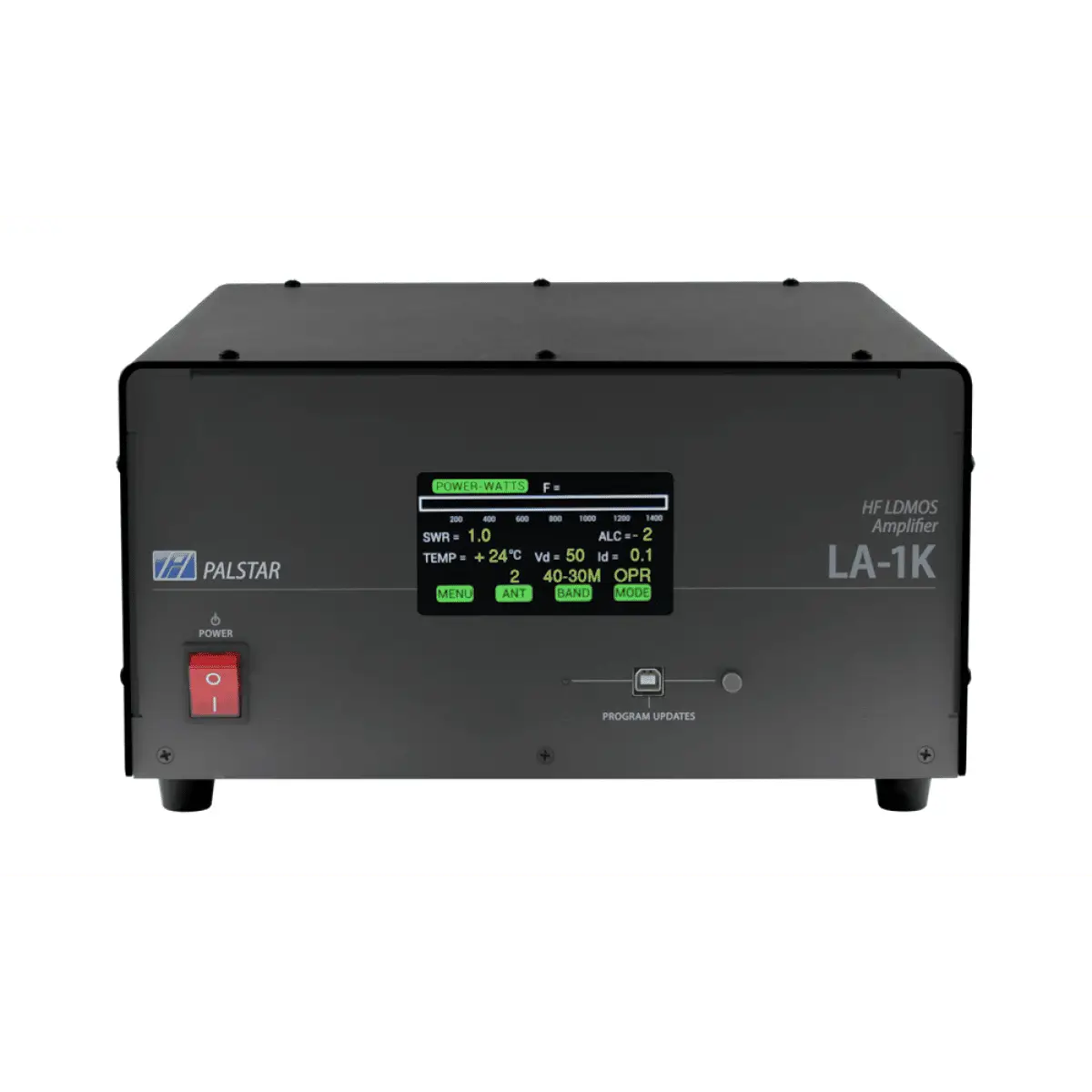

Palstar LA-1K Amplificatore Lineare 1kW

Palstar LA-1K Amplificatore Lineare 1kW

3,801.65 IVA Inclusa

Prodotto esaurito

Ricevi email quando disponibile

EAN: 8670000863688 COD: LA-1K Categoria: Tag:

Condividi Prodotto

The LA-1K is a RF Sensing Dual HF LDMOS 1000 Watt Amplifier. While the LA-1K will work with a wide variety of tuners and transceivers, Palstar custom-design the LA-1K to work as the perfect match for our very popular HF-AUTO autotuner.
MADE IN THE USA

Tempi di attesa 3/6 settimane



SSB Power: 1000 Watts PEP CW ICAS
CW Mode: Power levels up to 850W
FM/RTTY: 500 watts
AM: 275 watts
Frequency Range: 1.8 to 54 MHz
Display: Color TFT touch screen

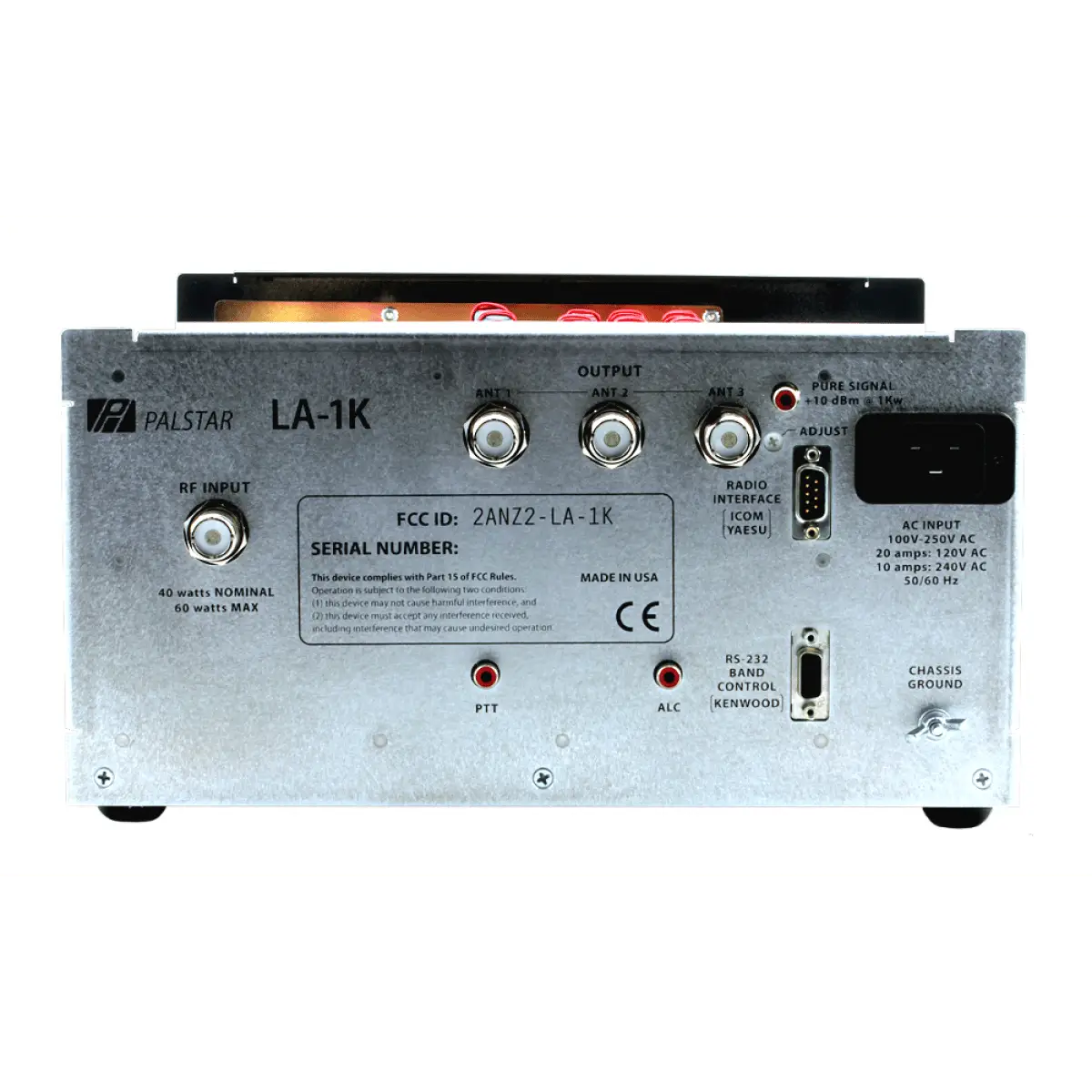

Output: 3 x RF SO-239 or Type N
ALC: Exciter power control
Drive Required: 40W – 55W (All Bands)
Gain: 13+/-1dB (NOMINAL)
RF Sensing: Auto Band Switching
RF Output: Vacuum RELAY T/R Switching
Power supply: Internal Medical grade
DC supply: 100VAC – 260 VAC 50V@42A
Power Devices: 2 x 5600H 600W (LDMOS)
Auto-Protect: SWR/Short Circuit
Intermod: Low IMD Distortion >-35dB
Pure signal: Sample@+10dBm (Rear Panel@1kW output)
Cooling: Variable Speed Fans (3 speed)
Chassis: .090 ga. aluminium
Top cover: .090 ga. aluminium powder coated
Dimensions: 12.75″ wide x 6.25″ high x 16.5″ deep
Shipping weight: 27 lbs, 12.25 Kg
Design concept: Full compatibility with the Palstar HF-AUTO autotuner
Warranty: Two year
