RigExpert AA-230 Zoom

RigExpert AA-230 Zoom

1 recensione

445.00 IVA Inclusa

✅ Garanzia 2 Anni   ✅ Prodotto Fatturabile   ✅ Controllo Qualità   ✅ Pagamenti Sicuri

Ricevilo entro il 5 Marzo e 11 Marzo
EAN: 8670000921128 COD: AA-230ZOOM Categoria: Tag:

Condividi Prodotto

RigExpert AA 230 Zoom con Bluetooth analizzatore di antenna abbiamo impiantato la tecnologia Bluetooth nell’analizzatore d’ antenna e abbiamo aperto nuove applicazioni per questo famoso dispositivo.

Ora, grazie alla sua capacità di lavorare in combinazione con uno smartphone o il tablet / netbook, il nuovo analizzatore d’antenna RigExpert AA-230 ZOOM BLE  è il tuo laboratorio a portata di mano.

Scarica e installa l’applicazione Android per il tuo smartphone / tablet o AntScope2 per il tuo netbook su:

  • azionare l’analizzatore da remoto
  • isolare galvanicamente l’analizzatore dal dispositivo del computer
  • vedere le caratteristiche della tua antenna in modo più dettagliato
  • individuare i guasti dei cavi in ​​modalità TDR
  • condividere i risultati delle misurazioni attraverso i social network.

Frequency range: 0.1 to 230 MHz

Frequency entry: 1 kHz resolution

Measurement for 25, 50, 75 and 100-Ohm systems

SWR measurement range: 1 to 100 in numerical modes,
1 to 10 in chart modes

SWR display: numerical or analog indicator

R and X range: 0…10000, -10000…10000 in numerical modes,
0…1000, -1000…1000 in chart modes

Display modes:
–    SWR at single or multiple frequencies
–    SWR, return loss, R, X, Z, L, C at single frequency
–    SWR chart, 20 to 500 points
–    R, X chart, 20 to 500 points
–    Smith chart, 20 to 500 points
–    Return loss chart, 20 to 500 points
–    TDR (Time Domain Reflectometer) chart
–    Cable tools (loss and characteristic impedance)

Optional open-short-load calibration.

Non Volatile memory:
– 100 slots to save measurement results

RF output:
–    Connector type: N
–    Output signal shape: square
–    Output power: -10 dBm (at 50 Ohm load)

Power:
–    Four 1.5V alkaline batteries, type AAA
–    Four 1.2V Ni-MH batteries, type AAA *
–    Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
–    When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface:
–    290×220 color TFT display
–    6×3 keys on the water-proof keypad
–    Multilingual menus and help screens
–    USB connection to a personal computer

Bluetooth specs.:
Bluetooth Specification v.4.0 (BLE).

Dimensions: 82 x 182 x 32 mm (3.2 x 7.2 x 1.3 in)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 236 g (8.32 oz)

Warranty: 2 years

GTIN-13: 4820185420211

RigExpert AA-230 ZOOM Option BLE is made in Ukraine.

Specifications are subject to change without notice.

* Batteries are not included with the analyzer.

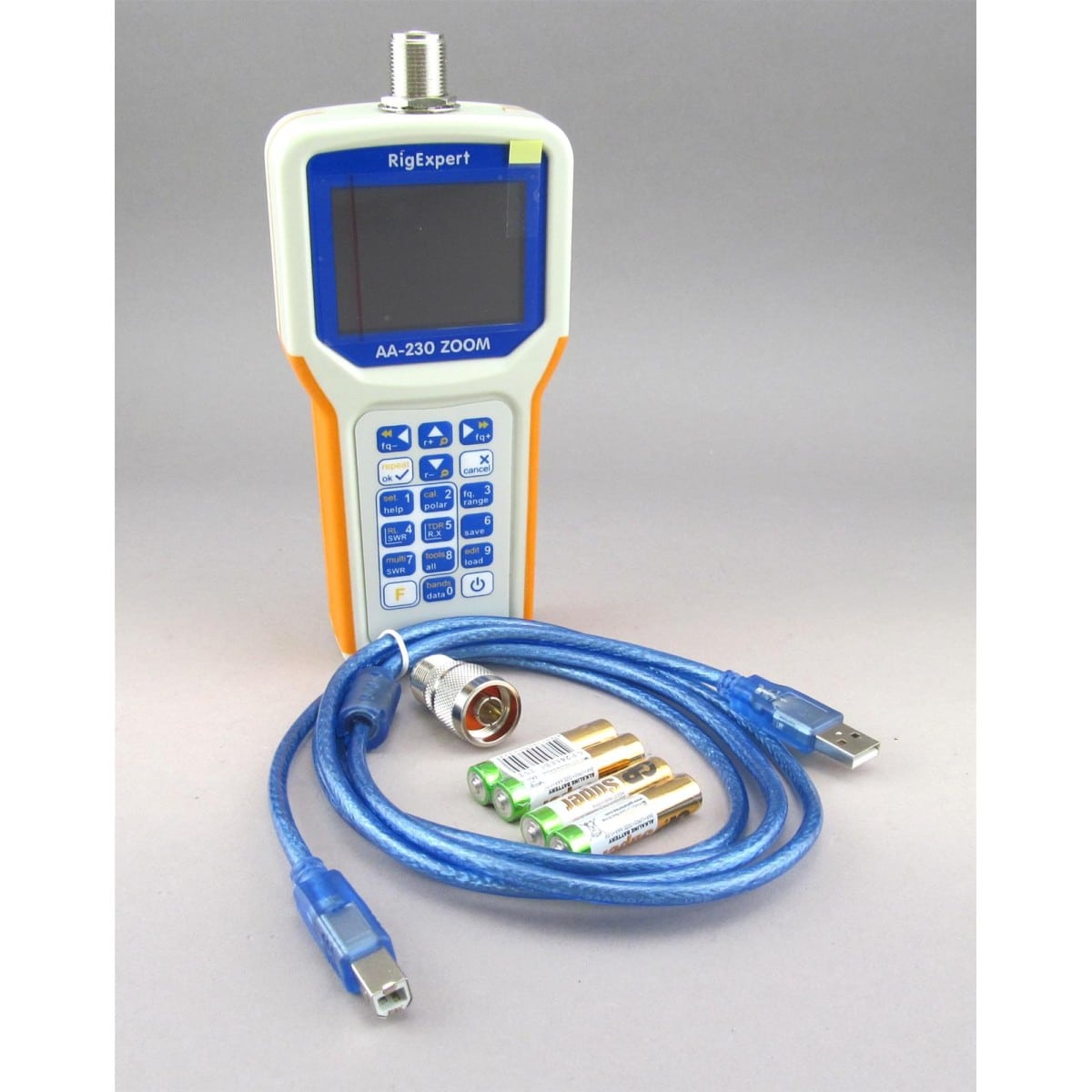

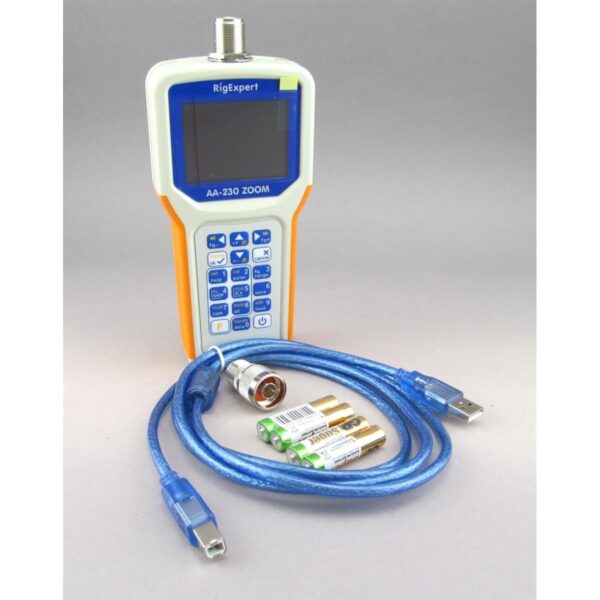

Nella confesione:

RigExpert AA-230 ZOOM Option BLE
N Male SO-239 Female adaptor
USB cable
Soft case
User’s manual



RigExpert comparison table
Function AA-30 ZERO AA-35 ZOOM AA-55 ZOOM
Bluetooth
AA-230 ZOOM  Bluetooth Stick 230 StickPRO AA-600/AA-1000/AA-1400 AA-650/AA-1500/AA-2000 ZOOM
Frequency range 0.06-35 MHz 0.06-35 MHz 0.06-55 MHz 0.1-230 MHz 0.1-230 MHz 0.1-600 MHz 0.1-600 MHz (AA-600)
0.1-1000 MHz (AA-1000)
0.1-1400 MHz (AA-1400)
0.1-650 MHz (AA-650)
0.1-1500 MHz  (AA-1500)
0.1-2000 MHz  (AA-2000)
Frequency entry step size 1 Hz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz
Min. sweep range 100 Hz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz
SWR2AIR™ mode + + + + +
MultiSWR™ mode + + + +
Reactance sign measurement + + + + + + + +
Antenna connector type SMA UHF (SO-239) UHF (SO-239) N UHF (SO-239) N N N
Output power +13 dBm +13 dBm +13 dBm -10 dBm -10 dBm -10 dBm -10 dBm -10 dBm
Output amplifier CMOS logic chip CMOS logic chip CMOS logic chip CMOS logic chip CMOS logic chip CMOS logic chip CMOS logic chip CMOS logic chip
Output signal shape Square Square Square Square Square Square Square Square
Reference impedance for SWR measurement 25, 50, 75, 100 Ohm 25, 50, 75, 100 Ohm 25, 50, 75, 100 Ohm 25, 50, 75, 100 Ohm 25, 50, 75, 100, 150, 200, 300, 450, 600 Ohm 25, 50, 75, 100, 150, 200, 300, 450, 600 Ohm 25, 50, 75, 100 Ohm 25, 50, 75, 100, 150, 200, 300, 450, 600 Ohm
Analog-to-digital converter 10-bit 12-bit 12-bit 16-bit 12-bit 12-bit 16-bit 16-bit
Batteries Two AA Two AA Four AAA 1*Li-Ion (18650) 1*Li-Ion (18650) three AA three AA
Battery voltage sensor + + + + + + +
Operation with external power supply (without battery) Ext 5V from USB from USB from USB from USB from USB from USB from USB
LCD Color TFT, 320×240 Color TFT, 320×240 Color TFT, 290×220 200×200 monochrome e-paper display Color TFT, 220×240 Color TFT, 320×240 Color TFT, 320×240 (AA650 and AA1500),
400×800 (AA2000)
Time Domain Reflectometer mode – * – * – * Built-in – * – * Built-in Built-in
Flash memory for storing graphs 10 memory slots 10 memory slots 100 memory slots 90 R/X or SWR memory slots, 10 TDR memory slots 90 R/X or SWR memory slots, 10 TDR memory slots
Multilingual support (English only) + + + (English only) (English only) + +
Bluetooth support + + +
Presets for radio amateur bands + + + + + + +

* The AntScope software is able to plot graphs in Time Domain Reflectometer (TDR) mode when analyser is connected to the computer. Since the resolution of the TDR graph is proportional to the maximum operating frequency of an analyzer, much better results are obtained by using AA-230 ZOOM and higher.
