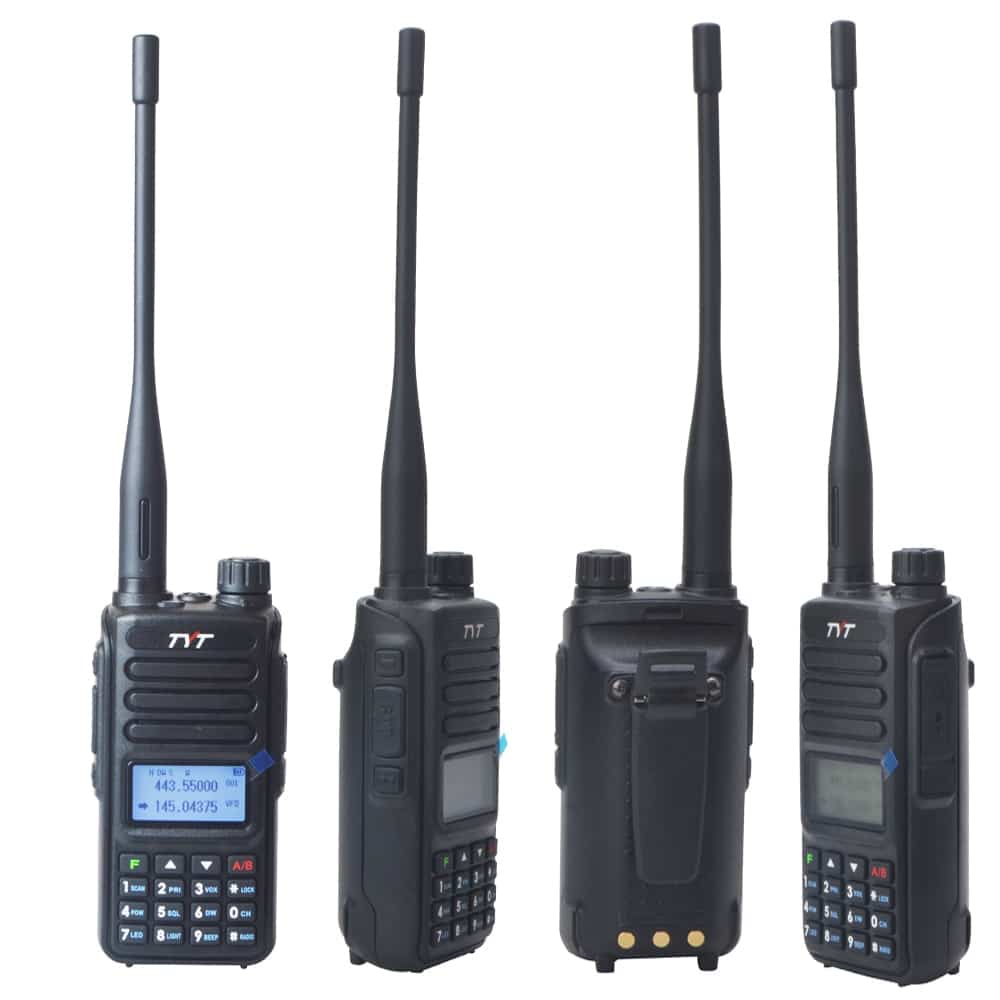

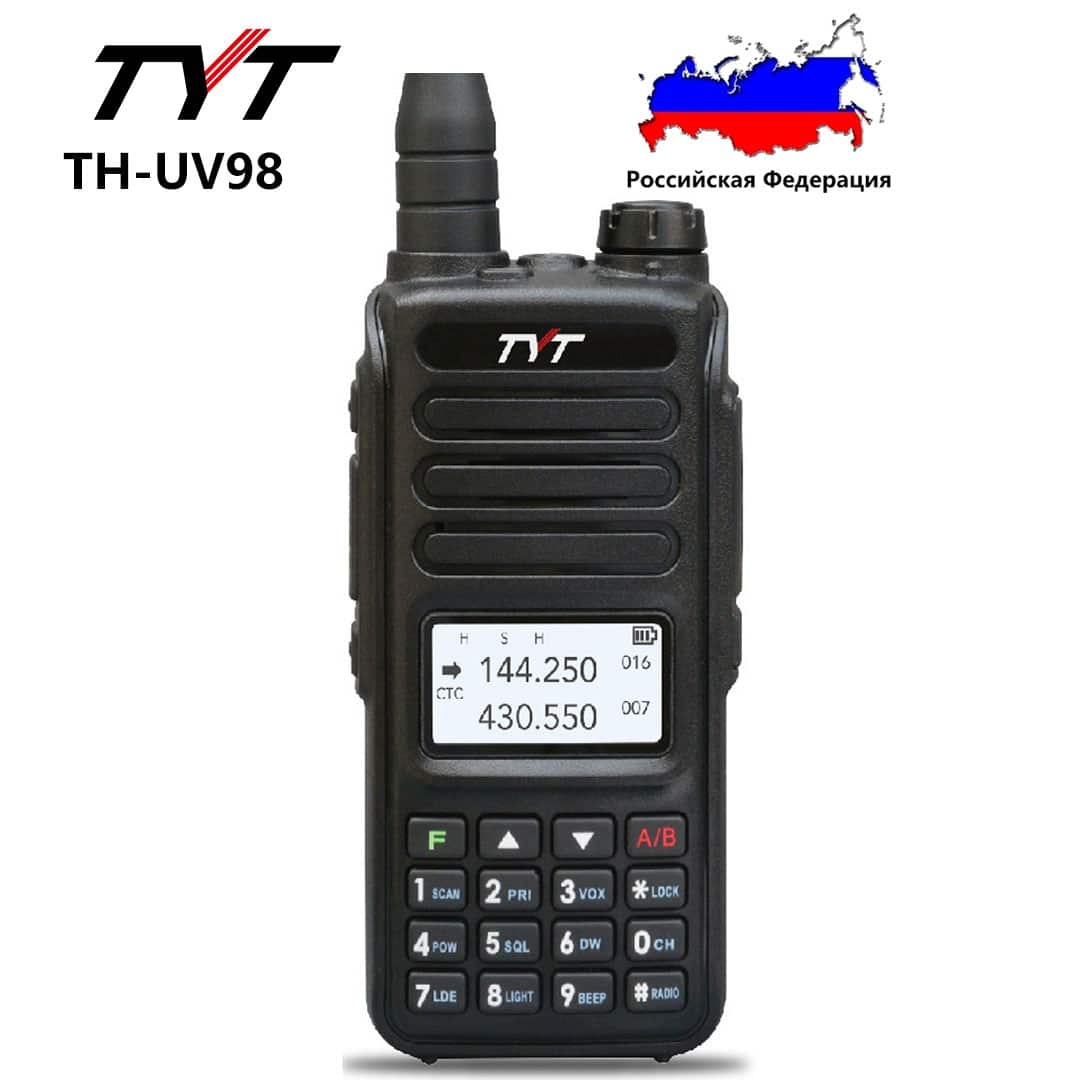

TYT TH-UV98 Ricetrasmettitore Portatile 10W 136-174/400-480MHz Dual Band

In offerta!

TYT TH-UV98 Ricetrasmettitore Portatile 10W 136-174/400-480MHz Dual Band

68.9976.99 IVA Inclusa

Affrettati la promozione scade!

Espansione di Banda:

✅ Garanzia 2 Anni   ✅ Prodotto Fatturabile   ✅ Controllo Qualità   ✅ Pagamenti Sicuri

Seleziona una variante del prodotto per ottenere una stima di consegna
EAN: 8670001146414 COD: 30LAN8C1B2XQ Categoria: Tag:

Condividi Prodotto



TYT TH-UV98 Analog Radio 10W 3200mAh Battery Dual Band 136-174MHz/400-480MHz UHF VHF Walkie Talkie 200 Channels

Main function


·DOT-MATRIX LCDDISPLAY

·Power-on mode select able

·DTMF calling channels quick assignment

·Wide/Mid/narrow bandwidth selectable

·200 channels

·Dual band, dual wait, dual standby,

·Busy channel lock

·Scan: frequency and CTCSS scan

·TOT

·ANI

·Remote stun / kill / activate

·PTT ID

·FM radio for 24 channels storage

·VOX

·Battery saving

·Scrambler

·Multiple types for keys lock setting

·Multi-Display mode

·DTMF

·Backlight brightness setting

·COMP

·1750Hz tone

·2 Tone / 5 Tone

·CTCSS/DCS

Technical


General

·Channel: 200

·Operating Voltage: 7.4VDC

·Operating Temperature: -10° C~+50° C

·Weight: 268g ( battery and antenna included )

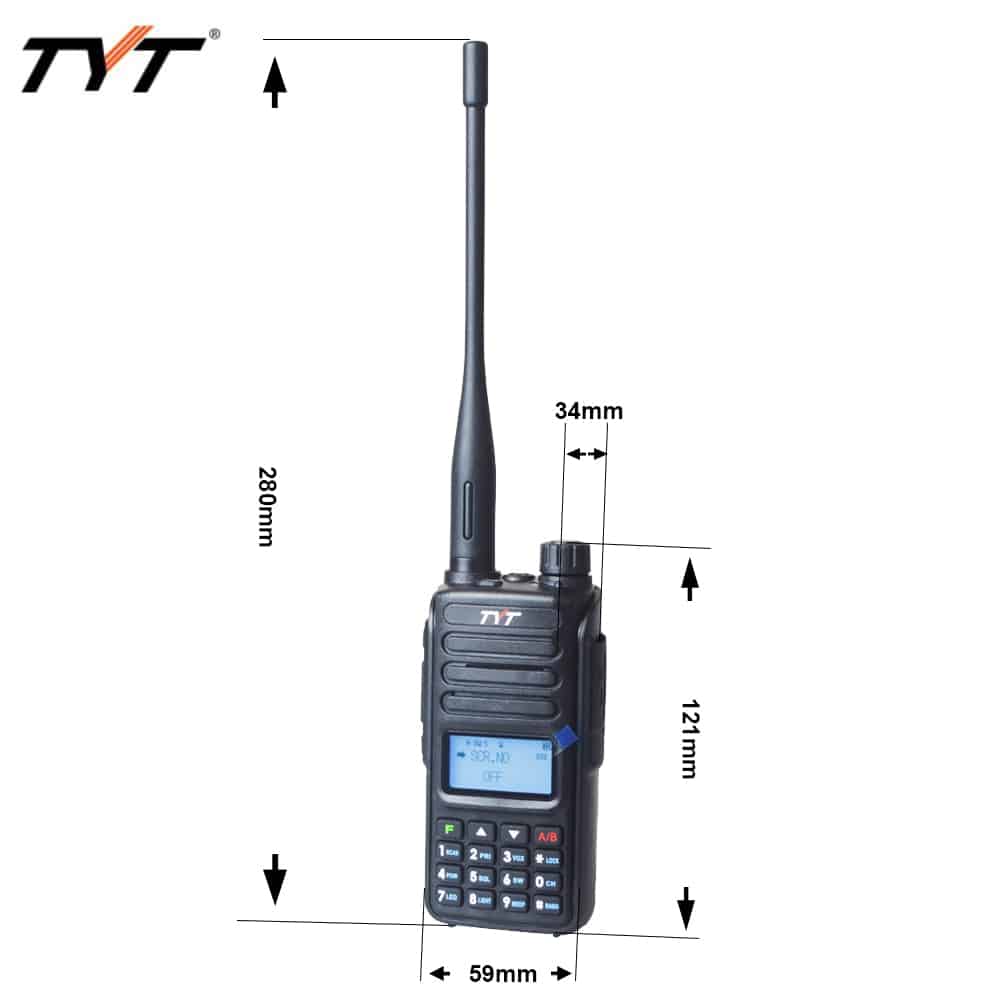

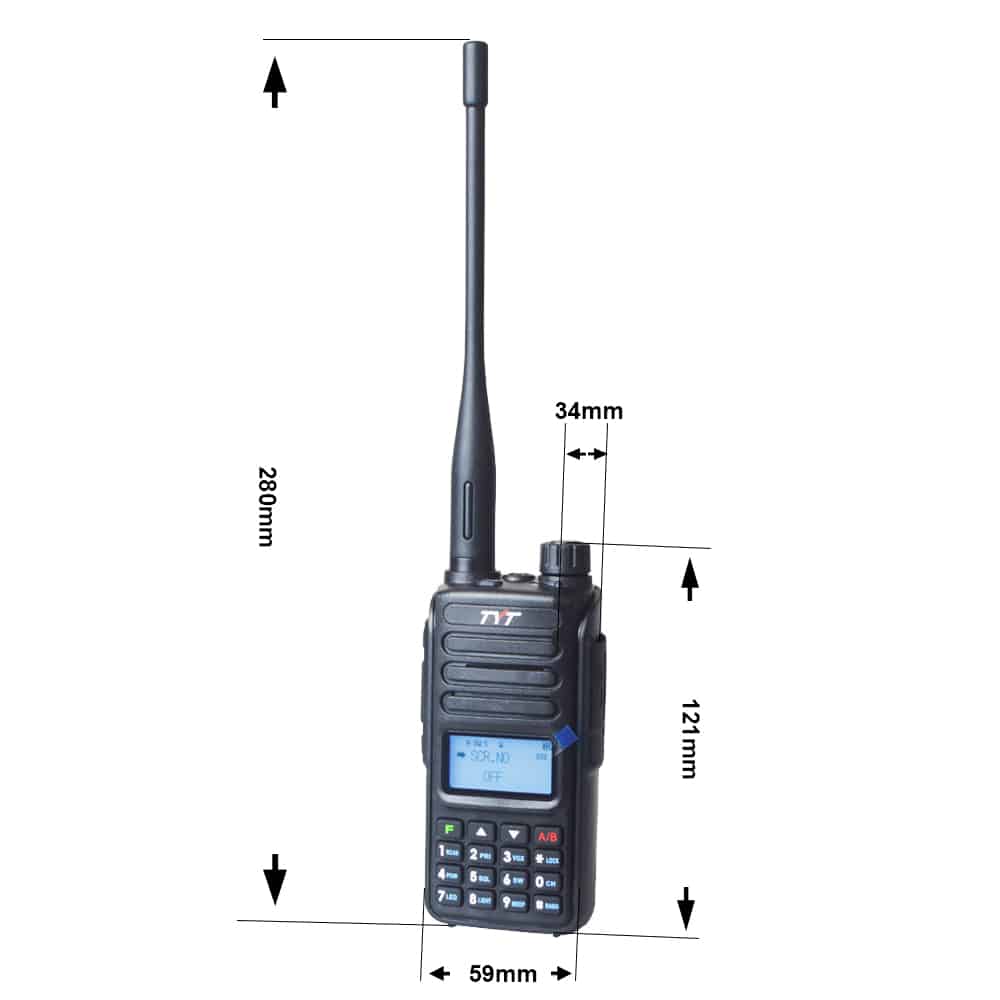

·Dimension: 121x58x42 mm

Receiver

Frequency: 136.000-174.000MHz & 400.000- -480.000MHz

Sensitivity :≤0.2μV

Occupied Bandwidth :≤16KHz

Intermediation:≥55dB

Audio power : > 500m W

Audio distortion :≤10%

Frequency Stability: 5ppm

Current: standby: 60mA working:250Ma

Audio response ( 300- -3400Hz) : +7~-12.5dB

Transmitter

Frequency: 136.000- 174.000MHz & 400.000- -480.000MHz

Power: High≤10W Low≤ 5W

Modulation Type: FM

Spurious Power:≤ -15db

Modulation Noise:

Modulation Distortion :

Frequency Stability: 5ppm

Max Fr. Deviation:≤±5KHz

Current:≤1600mA

Audio response ( 300- -3400Hz) : +6.5~- 14dB

Adjacent Ch Power:≥65dB



Informazioni aggiuntive

Peso 0.600 kg
Dimensioni 25 × 17 × 5 cm
Brand Name

TYT

EAN

8670001146414

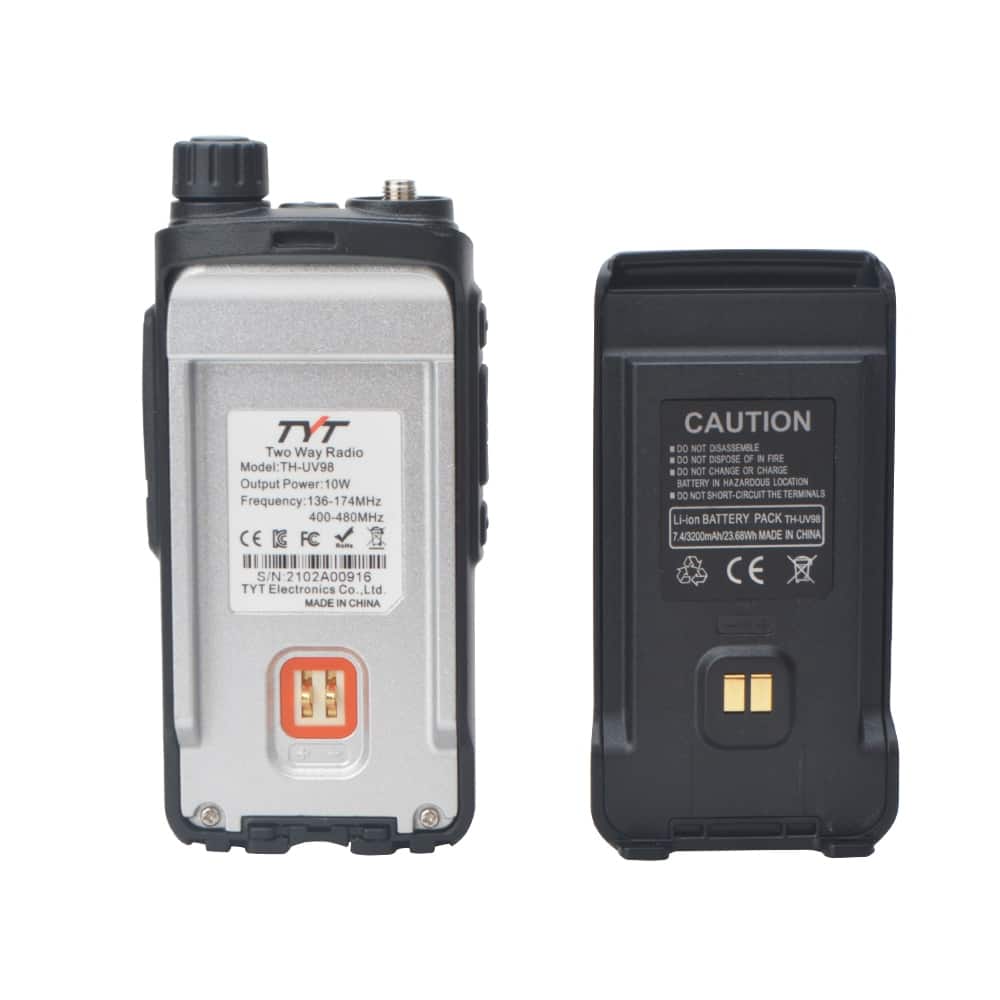

Battery Capacity(mAh)

3200mAh

Origin

Mainland China

Waterproof / Water-Resistant

No

Maximum Range

5km-10km

Model Number

TYT TH-UV98

Is_Display

Yes

Walkie Talkie Type

Portable

Output Power(w)

5w-10w

Material

Plastic

Storage Channel

200

Frequency Range

136-174/400-480MHz

Dimensions

121*58*42 mm

Certification

CE, FCC
